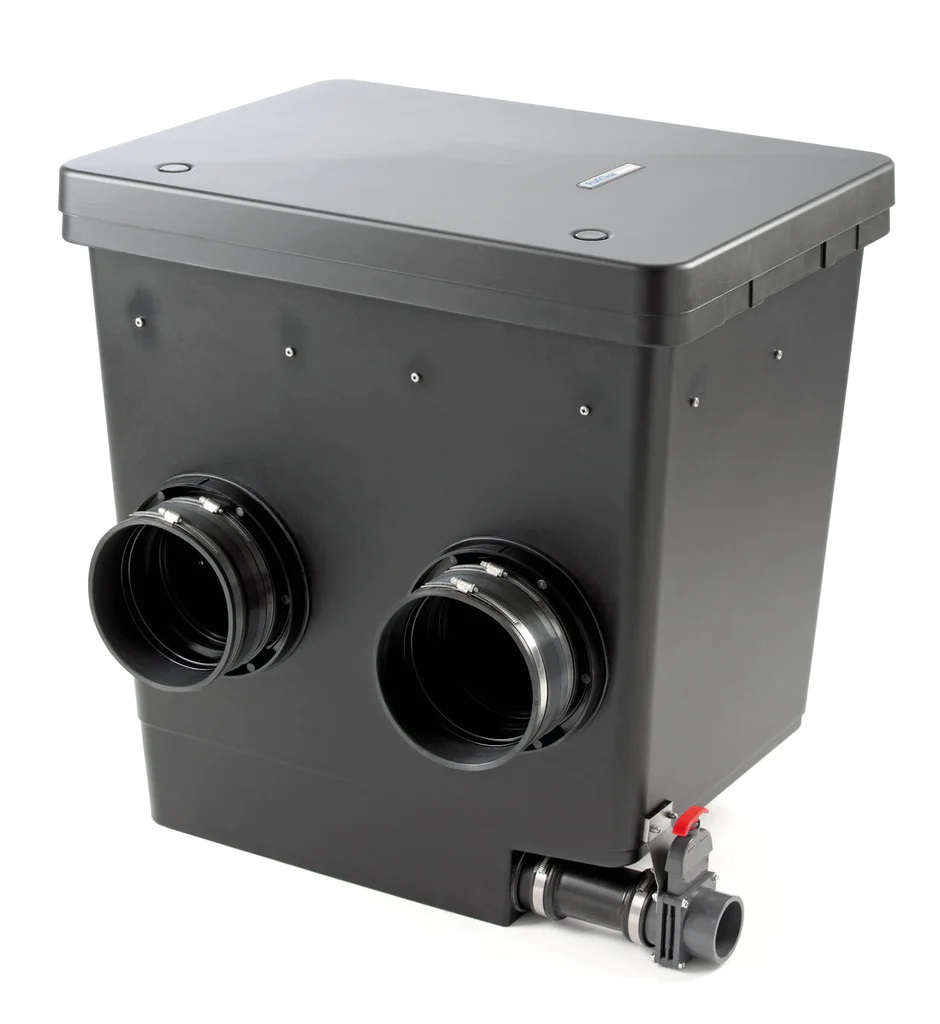

Oase Proficlear Premium Individual Module
Features:
- Filtration Efficiency:
- Utilizes deep bed filtration to 60 microns for effective particle removal.
- Self-Cleaning System:
- Equipped with an intelligent controller that handles the self-cleaning process.
- Price/Performance Ratio:
- Offers a first-class price/performance ratio, indicating a balance between cost and functionality.
- Technology and Development:
- Incorporates mature, professional technology with more than three years of development time.
- Space-Saving Design:
- Features a space-saving pump and UVC chamber for maximum flexibility in connection.
- Connection Flexibility:
- Allows for flexible connections through 2 x DN110 and 2″ transitions.
- Filter Capacity Expansion:
- Enables an increase in filter capacity by filling individual baskets in the flow area with additional filter media, up to 8 liters of fill volume.
- Bottom Drain:
- Integrated bottom drain with a high-quality, finely engineered slide valve.
- Adaptability:
- Offers flexible adaptation of the filter system to individual requirements as an individual module.
- Origin:
- Described as an innovative and reliable product “Made in Germany.”
Specifications:
- Net Weight: 37.000 kg
- Guarantee: 2 years, with an option to request an additional 1-year guarantee.
- Material: GRP Duroplast/stainless steel
- Number of Inlets: 2 units
- Connection Inlet: 2 x 185 mm
- Number of Outlets: 4 units
- Connections Outlet: 2 x 2″ / 2 x DN 110
- Connections, Sludge Discharge: DN 75
- Connection to: AquaMax Eco Gravity, Bitron Gravity
- Min. Flow Rate: 10,000 l/h
- Max. Flow Rate: 33,000 l/h
- Installation Height Above Water Level: 11.5 cm
- Type of Use: Gravity-fed system, Pump-fed system
- Other: Pollutant discharge incl. slide valve
