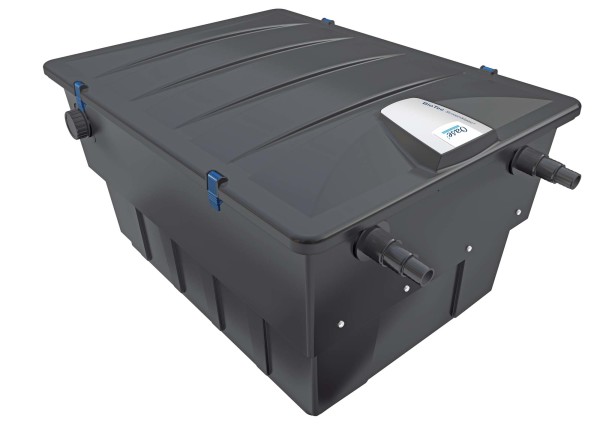

OASE Biotec Screenmatic 40000

The Biotec Screenmatic 40000 is a premium gravity filter by OASE perfect for ponds 10000 litres – 40000 litres. For ponds without fish, this filter can handle up to 40000L. For ponds with average fish stock such as goldfish, 20000L. And for ponds with koi, 10000L.

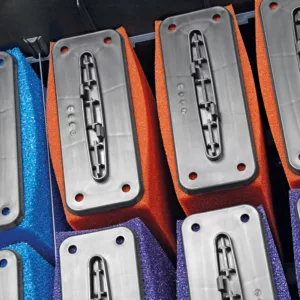

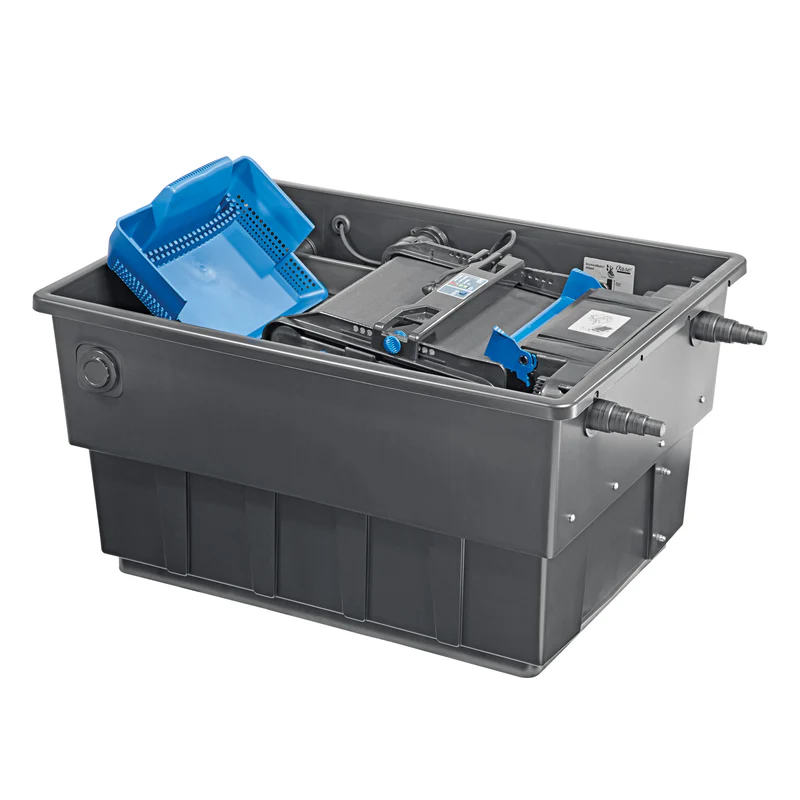

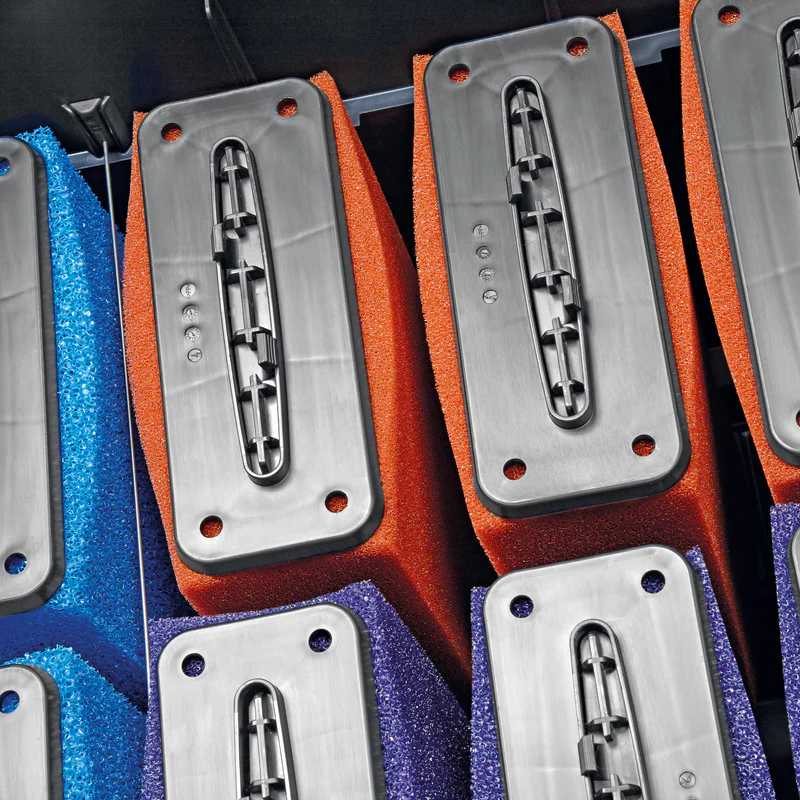

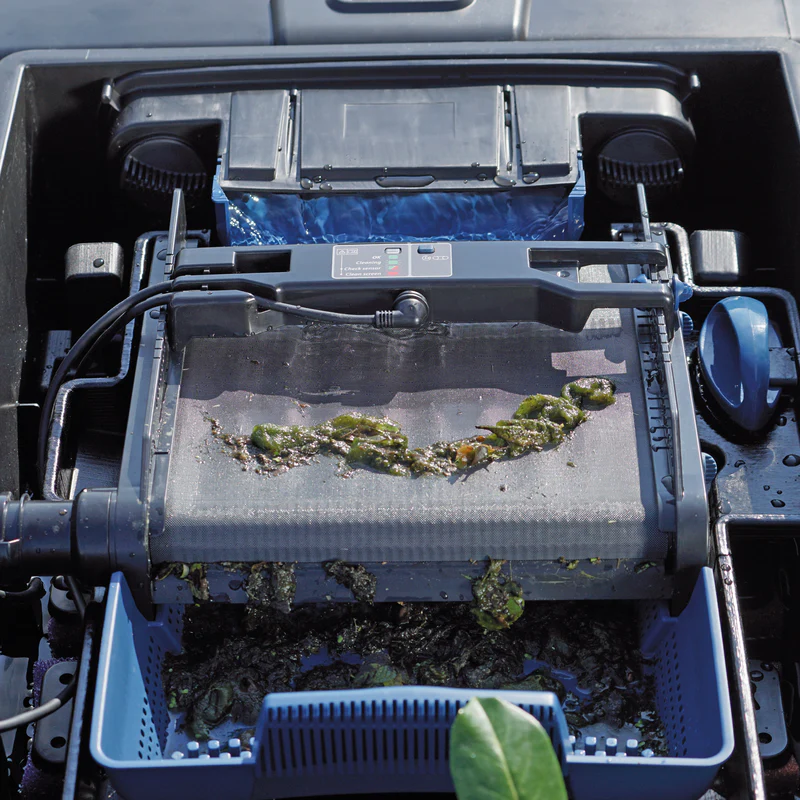

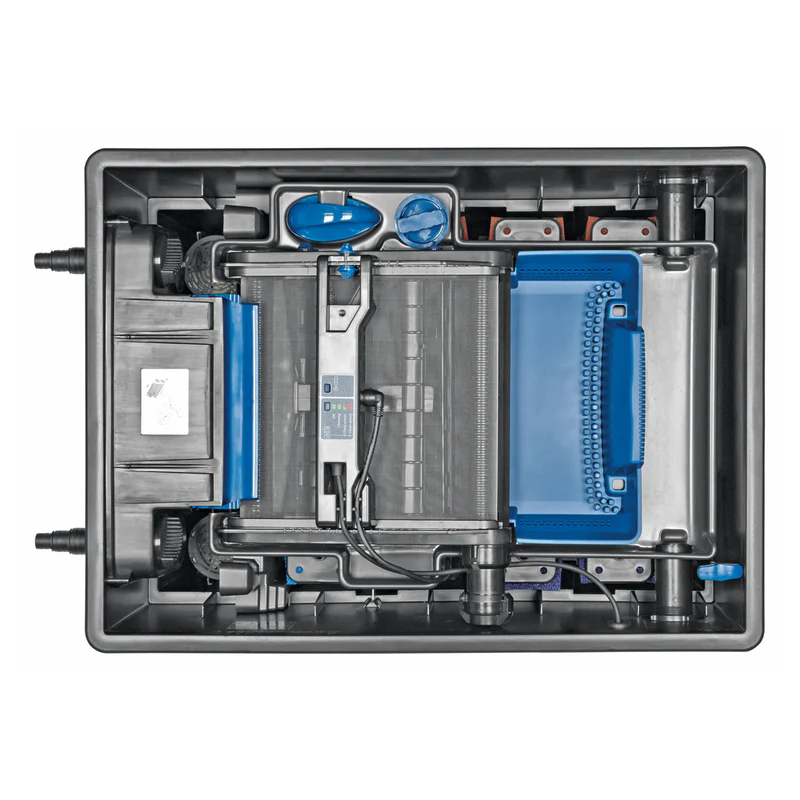

This filter requires very little maintenance due to its automated screening and collection systems. These remove large debris such as leaf litter and waste before they enter the filter itself. The motor of this mechanism is double-sealed to ensure an increased service life. This adjustable automatic cleaning system makes the separation of waste incredibly efficient. This initial large particle filter belt will clean itself depositing waste into a tray for easy removal and disposal. The filter sponges are located underneath this automatic system. To clean them simply lift the filter belt and use the attached handle to squeeze the sponges out inside the filter while diverting the flow into a secondary outlet into your garden/drain.
Monitoring all of these functions is an LED controller and cleaning sensor, which also includes a manual index button for user convenience. Compared to the previous BioTec 12 model, it has a larger waste collection hopper. Additionally, it boasts a new storm-proof filter lid with easy-open clips for durability and accessibility.

Recommended pumps/UVC clarifiers

If you wish to attach a UVC component to your filtration (recommended to prevent the growth of blue-green algae) the filter box inlet has a direct connection inbuilt for the OASE Bitron 36w -110w & Bitron Eco 120 – 240w UV Clarifiers.
For optimal performance, we recommend you connect this filter to the OASE Aquamax Eco Premium 12000 Filter Pump.
For more info on this filter and whether it is right for you, please don’t hesitate to get into contact with us!

specifications

Product Number 03OG003 | 57694
Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC
Power consumption – W 5 W
Cable length 12 V device 2.10 (Power unit) + 5.00 m
Net weight 20.000 kg
Guarantee (+ request guarantee) – years 2 + 1 Years
Total number of filter foams – pc. 8 Units
Number of blue filter foams – pc. 2 Units
Number of red filter foams – pc. 3 Units
Number of purple filter foams – pc. 3 Units
Special filter granulate – kg 2.5 kg
Temperature display No
Coarse dirt separation – micrometres 300 µm
Connection inlet – mm 25 / 32 / 38 mm
Connection inlet 1″, 1 ¼”, 1 ½”
Connections outlet DN 75
Connections, sludge discharge DN 50
Min. flow rate – l/h 4000 l/h
Max. flow rate – l/h 9000 l/h
Suitable for ponds up to max. – m³ 40 m³
Suitable for ponds with fish stock – m³ 20 m³
Suitable for ponds with koi – m³ 10 m³
Connection to Bitron C 36 – 110 W, Bitron Eco 120 – 240 W
